Product details:

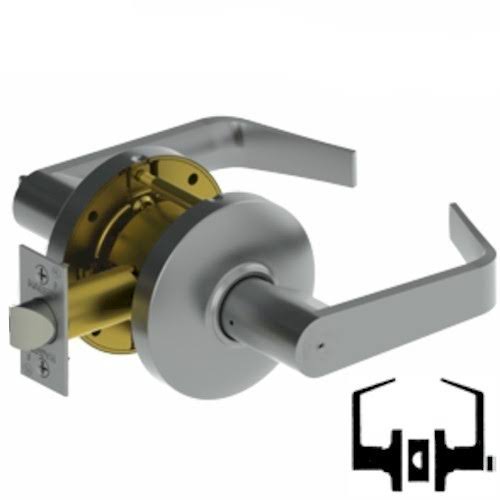

Privacy: Latchbolt operated by lever from either side. Outside lever is locked by push button and unlocked by emergency release outside, operating inside lever or closing door. Rose Diameter: 3-11/32" (85 mm) levers Door Thickness: Levers: 1-3/8" - 2" (35 mm - 51 mm) Backset: 2-3/4" (70 mm) Standard (Available by factory order - 2-3/8" (60 mm) - Optional - 3-3/4" (94 mm) - Optional - 5" (128 mm) Optional) Latchbolt: 1/2" (13 mm) Throw - Stainless steel - 1-1/8" x 2-1/4" (25 mm x 57 mm) Faceplate for 2-3/4" (70 mm) Strikes: 3935 ASA 1-1/4" x 4-7/8" (32 mm x 124 mm) strike Standard Finishes: US26D Satin Chrome (Levers only) Options from factory: Lead Lined (Levers Only) - Tactile Knurling (Levers Only) - Split Finish - Additional latchbolts and strikes available Standard door prep: 2-1/8" diameter (cross bore) - Latch hole: 1" diameter (edge bore) Lever options: Withnell , (Available by factory order; pollo knob; Archer, August) Applications: - Standard duty commercial - No exposed mounting screws . . .,1069FP,Trilogy PDL3000,Cal Royal 9800,Alarm Lock DL1200,Trilogy DL1200,LL1031-26D-41,BEA BR3,LR1041S-26D-41,Bommer 7801,Trimco 1069,Kaba 1011-26D-41,LR1021B-26D-41,V40 EA,V40 EE,HES 9600,V40 EB,3023-3,6211,HES 1006CS,3029-6,Trilogy DL2700WP,1069L,sl00
